Single Plenum Low Ceiling Hood
Frequently asked questions
What is the purpose of the Single Plenum Low Ceiling Hood?
It is designed to remove oil fumes, smoke, steam, and odors, creating a clean and safe kitchen environment.
How simple is the cleaning and maintenance process?
Very simple — the hood has removable, washable baffle filters and a detachable grease tray for easy cleaning.
In what type of kitchens can this hood be installed?
It is suitable for commercial kitchens such as restaurants, hotels, food courts, bakeries, hospitals, and institutional kitchens.

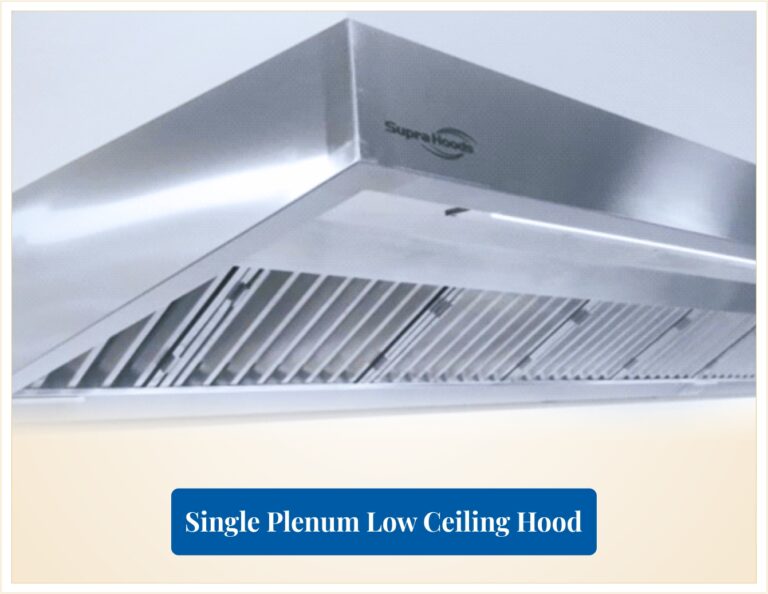

The Single Plenum Low Ceiling Hood is a commercial kitchen hood designed to ensure a safe and efficient cooking environment by removing oil fumes, smoke, steam, and odors. Built from AISI 304 grade stainless steel with a polished finish, it is fabricated using 18/20 swg (1.0–1.2 mm thick) material, ensuring durability and hygiene. All metal edges are rolled smooth to eliminate sharpness, while the seamless welded body construction enhances safety and strength. The hood comes equipped with mechanized baffle filters for superior grease extraction, making it suitable for all types of commercial cooking equipment.
This hood is engineered for convenience and performance, featuring easily removable and washable filters, grease gutters with detachable trays, and provisions for fire suppression systems. It also includes sliding dampers for fine airflow balancing, stainless steel exhaust collars, and mounting brackets for quick installation. To improve visibility and safety in the kitchen, it is fitted with LED light fixtures covered with heat-toughened glass, with wiring safely encased in heatproof conduits. With its robust construction and user-friendly design, the Single Plenum Low Ceiling Hood offers long-lasting performance and reliable functionality for professional kitchens.
Remarks: UV-WITH / WITHOUT
- Material of construction: AISI 304 #4 finish
- Fabricated from 18/20 swg 1.2/1.0 mm thick
- Seamless welded body construction
- No sharp edges and well-ground surface for safety
- No hardware visible inside the hood
- Mechanised baffle filters for high efficiency
- Filters are easily removable & washable
- Hood includes a 50 mm wide grease gutter for oil collection with removable grease tray
- Appropriate number of LED light fixtures with heat-toughened glass
- Wiring in heatproof conduits
- Stainless steel (S.S.) collar for exhaust
- Sliding damper for fine balancing of airflow
- Stainless steel (S.S.) mounting brackets for easy installation
- Provision for fire suppression system
- Sliding damper
Where Our Kitchen Hoods Are Used :
- Restaurants & Cafés
- Hotels & Resorts
- Food Courts & Malls
- Canteens & Catering Units
- Commercial & Industrial Kitchens
- Bakeries & Confectionery Units
- Hospitals & Healthcare Kitchens
- Institutional Kitchens (Schools, Colleges, Hostels)
